Specifications
Adjustment: Pneumatic with 3/2 way
function
Basic position: Compressed air out = working pressure out
Working pressure: max. 500 bar.
Flow rate: max. 230 L/min
Connection dimensions:
Inlet: 1" female thread
Pressure connection: 1" female thread
Bypass: 1" female thread
Drain pipe: DN 25
Compressed air connection: 1/4" female thread
Air consumption: 32 n L/min
Material:
Membraancilinder: Aluminium
Housing: Brass
Valve seat: 1.4057 hard
metal coated (stellite)
Valve ball: 1.4007 hard
metal coated (stellite)
Function:
The operating pressure is adjusted against the flow by means of a compressed air control valve.
The overflow water is discharged via the bypass.
The set working pressure can be switched ON/OFF via a 3/2-way compressed air valve.
The system is protected against overpressure.
Installation position: Random
Weight: 4.6 kg
Part number: M40501007
Fits pumps: KE - EV - KT - KF - KS - MW Series

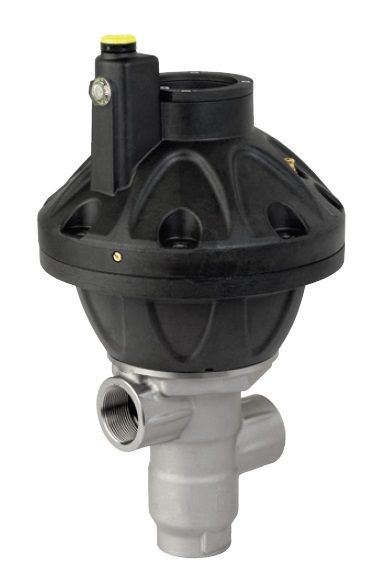

Specifications
Adjustment: Pneumatic with 3/2 way function
Basic position: Compressed air outlet = working pressure outlet
Working pressure: Max. 200 or 300 or 500 bar.
Flow rate: Max. 300 L/min
Connection dimensions: Inlet: 1" female thread
Pressure connection: 1" female thread
Bypass: 1.25" internal thread
Compressed air connection: 1/4 inch female thread
Air consumption: 28 n L/min at 6 bar
Material: Membrane cylinder: Aluminium, anodized
Housing: Cast stainless steel
Function:
The working pressure is adjusted against the flow by means of a compressed air control valve.
The overflow water is discharged via the bypass.
The set working pressure can be switched ON/OFF via a 3/2-way compressed air valve.
The system is protected against overpressure.
Installation position: vertical or horizontal
Weight: 16 kg
