Specifications

Adjustment: Pneumatic with 3/2 way function

Basic position: Compressed air outlet = working pressure outlet

Working pressure: max. 1500 bar

Flow rate: max. 240 L/min

Temperature: max. 40 °C

Air pressure: max. 7.5 bar

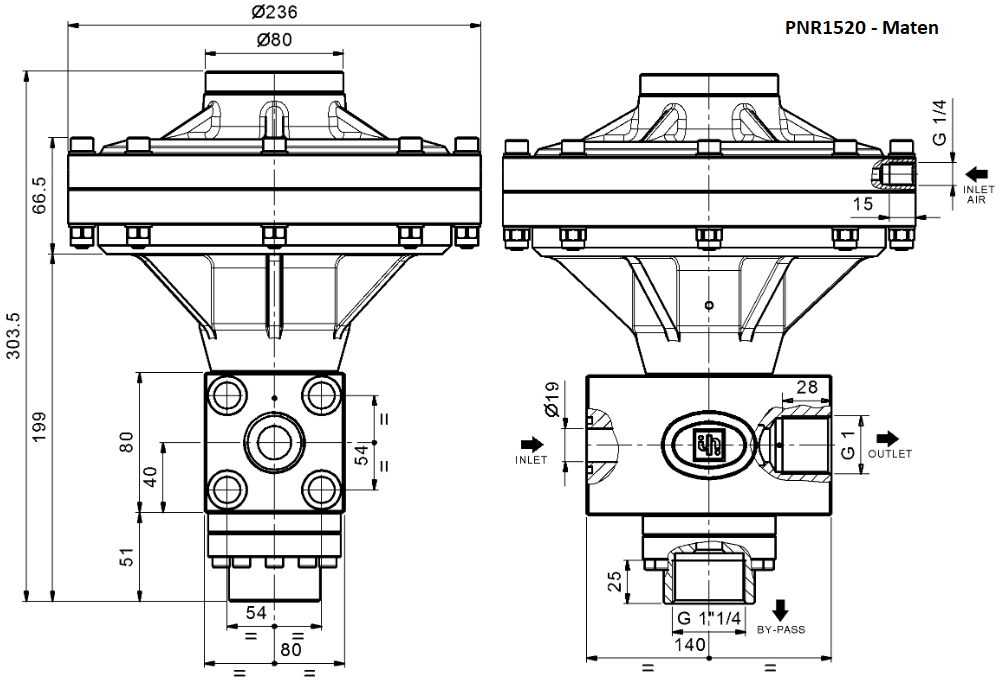

Connection dimensions:

Inlet: 19 mm sealing lens

Pressure connection: 1" female thread

Bypass: 1 1/4" internal thread

Compressed air connection: 1/4" female thread

Material:

Stainless steel 1.4307

Function:

The operating pressure is adjusted against the flow by means of a compressed air control valve.

The overflow water is discharged via the bypass.

The system is protected against overpressure.

Installation position: Random

Weight: 14.0 kg

Fits pumps: SR HP - TR HP
