Pneumatic Pressure Valves

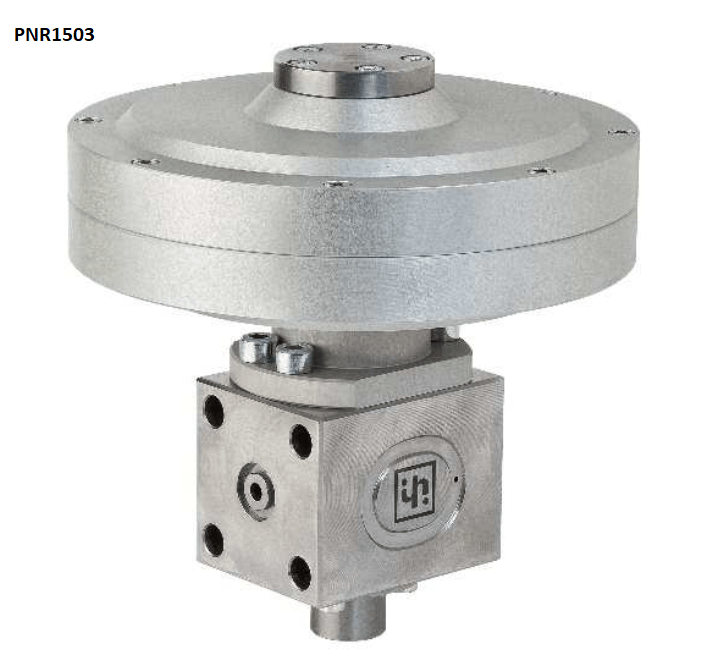

PNR1503

Specifications

Adjustment: Pneumatic with 3/2 way function

Basic position: Compressed air out = working pressure out

Working pressure: max. 1500 bar

Flow rate: max. 30 L/min

Temperature: max. 40 °C

Air pressure: max. 7.5 bar

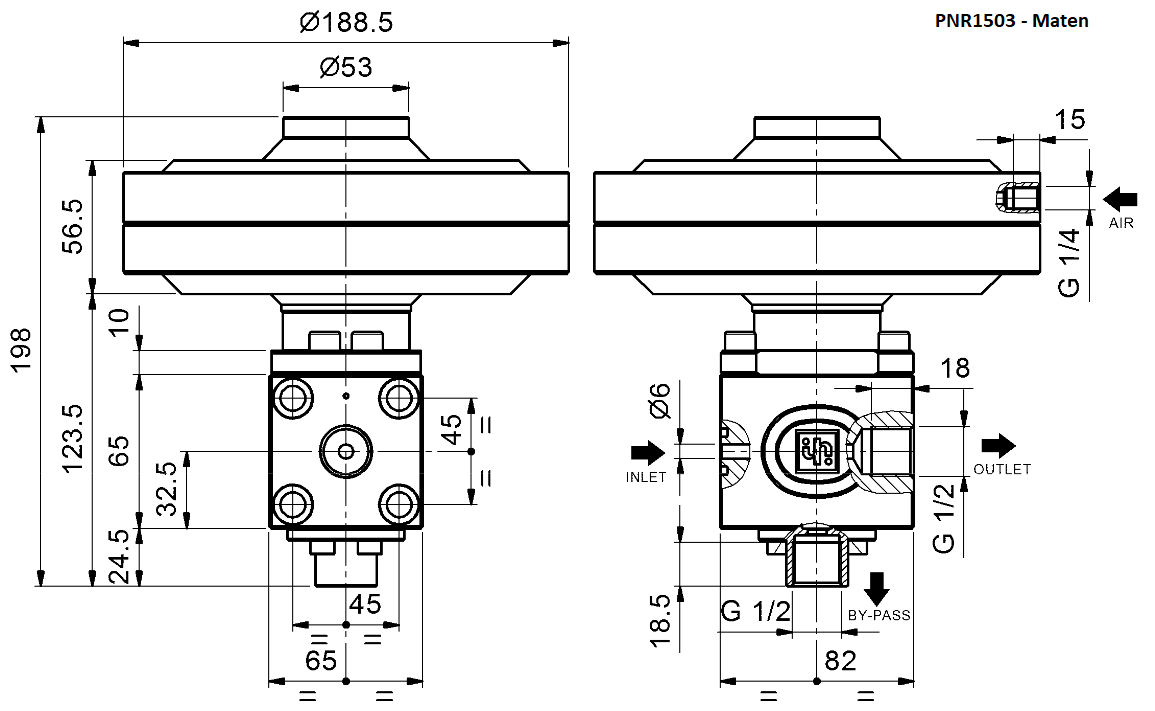

Connection dimensions:

Inlet: 6 mm sealing lens

Pressure connection: 1/2" female thread

Bypass: 1/2" internal thread

Compressed air connection: 1/4" female thread

Material:

Stainless steel 1.4307


Function:

  • The operating pressure is adjusted against the flow by means of a compressed air control valve.

  • The overflow water is discharged via the bypass.

  • The system is protected against overpressure.


    • Installation position: Random

    Weight: 6.0 kg


    Fits pumps: VFH - VKH - SM14 Series
